The Technical Guide to Identifying High-Performance LED Headlight Bulbs (2026 Edition)

The aftermarket automotive lighting industry is saturated with hyperbolic claims. "30,000 Lumens! 500% Brighter!" These marketing slogans are plastered across nearly every wholesale LED headlight bulb listing. Yet, professional retrofitters, fleet operators, and serious automotive enthusiasts know a frustrating truth: a bulb that looks blindingly bright on a test bench often underperforms dangerously on a dark highway.

To identify genuinely high-performance LED headlight bulbs, you must move beyond superficial brightness metrics and examine the core engineering principles that govern light. This technical guide strips away the marketing jargon to focus on the two pillars of automotive lighting excellence: Optical Precision and Thermal Management.

1. The "Lumens Trap": Why Peak Numbers Mislead Buyers

Most LED headlight suppliers advertise raw lumens (or peak lumens). This is the theoretical maximum light output calculated immediately upon ignition, under perfect laboratory conditions, before the LED chip begins to generate significant heat.

In a real-world automotive application — enclosed within a sealed headlight housing next to a hot engine bay — this peak number is virtually meaningless. What matters for driving safety is effective (or maintained) lumens: the stabilized light output the bulb produces after 30 minutes of continuous operation. A poorly engineered bulb rated at "20,000 raw lumens" will rapidly degrade to a fraction of that output as it overheats, leaving the driver with compromised visibility. Sustaining brightness requires advanced thermal engineering, not just powerful chips.

2. The Engineering of Optical Precision

The most critical factor in automotive lighting performance is not how much light is produced, but where that light is directed. Automotive headlight housings (both reflector bowls and projector lenses) are precision optical instruments designed to capture and focus light originating from a very specific spatial coordinate.

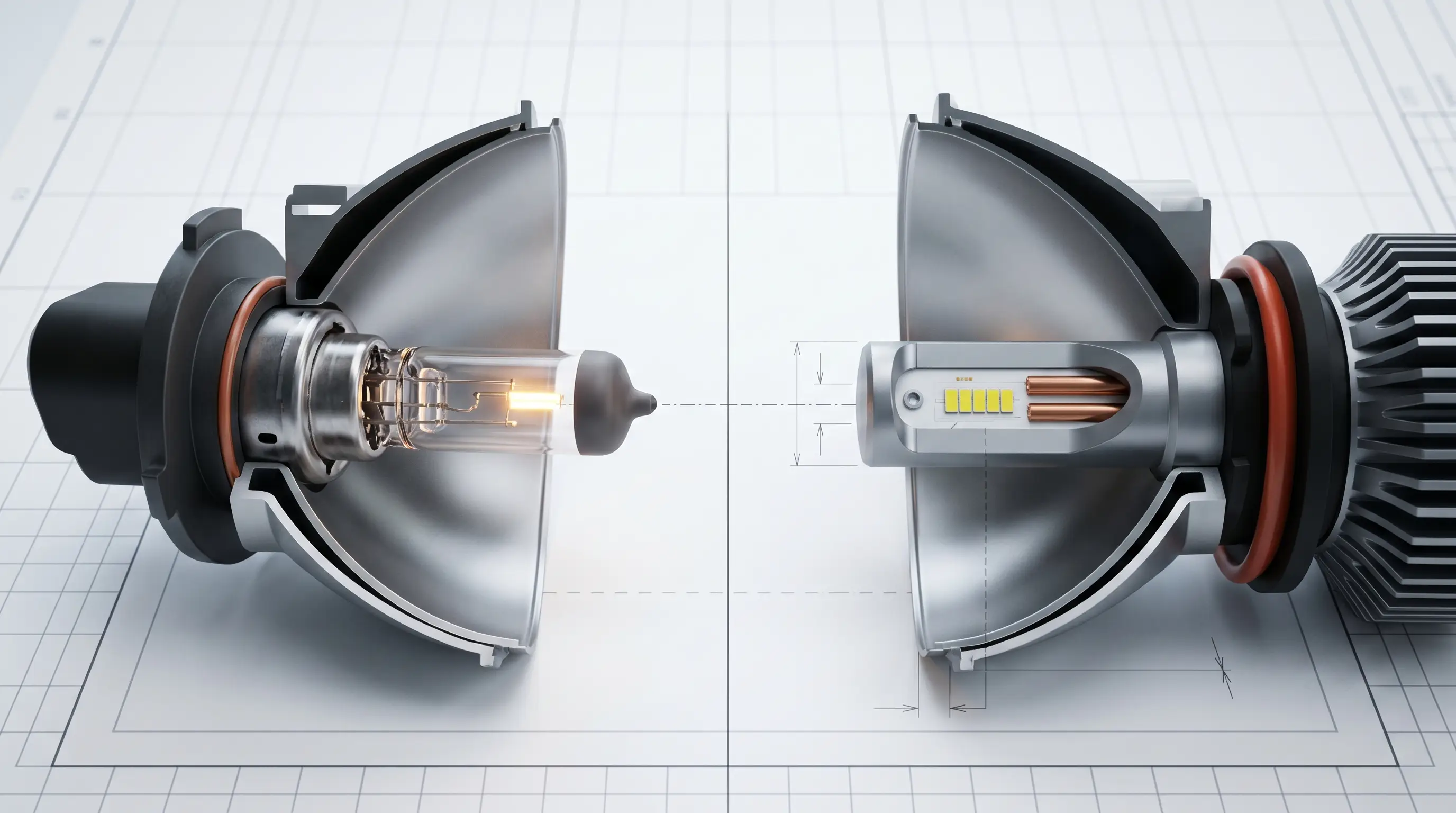

Filament Alignment: Why 1:1 Halogen Geometry Is Non-Negotiable

Every automotive headlight housing — whether a traditional reflector bowl design or a modern projector-lens system — was engineered around a single, non-negotiable geometric reference point: the precise spatial location of the original halogen filament. The parabolic reflectors, lens focal planes, and aiming adjusters all assume that the light source sits at this exact coordinate in three-dimensional space.

When a halogen bulb is replaced with an LED, the LED chip array must occupy that identical physical position. This principle is called 1:1 halogen filament geometry alignment, and it is the single most critical optical specification in LED headlight bulb design. The consequences of deviation are severe and non-recoverable by any downstream adjustment:

• 0.5mm displacement horizontally shifts the entire beam left or right, potentially blinding oncoming drivers on one side while leaving the driver's own road surface inadequately lit.
• 0.5mm axial displacement (forward or backward along the bulb's axis) defocuses the reflector's parabolic geometry, destroying the collimated hotspot and producing a diffuse, inefficient scatter pattern.
• Any vertical misalignment directly compromises the low-beam cut-off line — the horizontal boundary that legally separates illuminated road from dark sky — producing either dangerous glare or excessive light loss above the road surface.

CARNEON's entire LED headlight bulb lineup is engineered to strict 1:1 halogen dimensional tolerances. Our CSP chip arrays are positioned through precision manufacturing jigs to replicate the original filament location within ±0.3mm across all production units — not just engineering prototypes. For specific focal point alignment testing data across different bulb models (such as H7, H11), please explore our LED Headlight Bulb product specifications.

Beam Pattern Anatomy: The Cut-Off Line and the Hotspot

Proper optical geometry translates directly into a safe, functional beam pattern characterized by two main elements:

• The Cut-Off Line (Low Beam): A sharp horizontal boundary. Light stays below the line to illuminate the road, leaving the area above the line dark to prevent blinding oncoming traffic. Bulbs lacking optical precision bleed "stray light" above this line, creating dangerous glare.
• The Hotspot (High Beam & Distance): A concentrated core of intense light located centrally (or slightly toward the passenger side) just below the cut-off line. A well-engineered hotspot punches through darkness to maximize viewing distance. Cheap LEDs scatter light indiscriminately, producing a wide but shallow pool of light that fails at highway speeds.

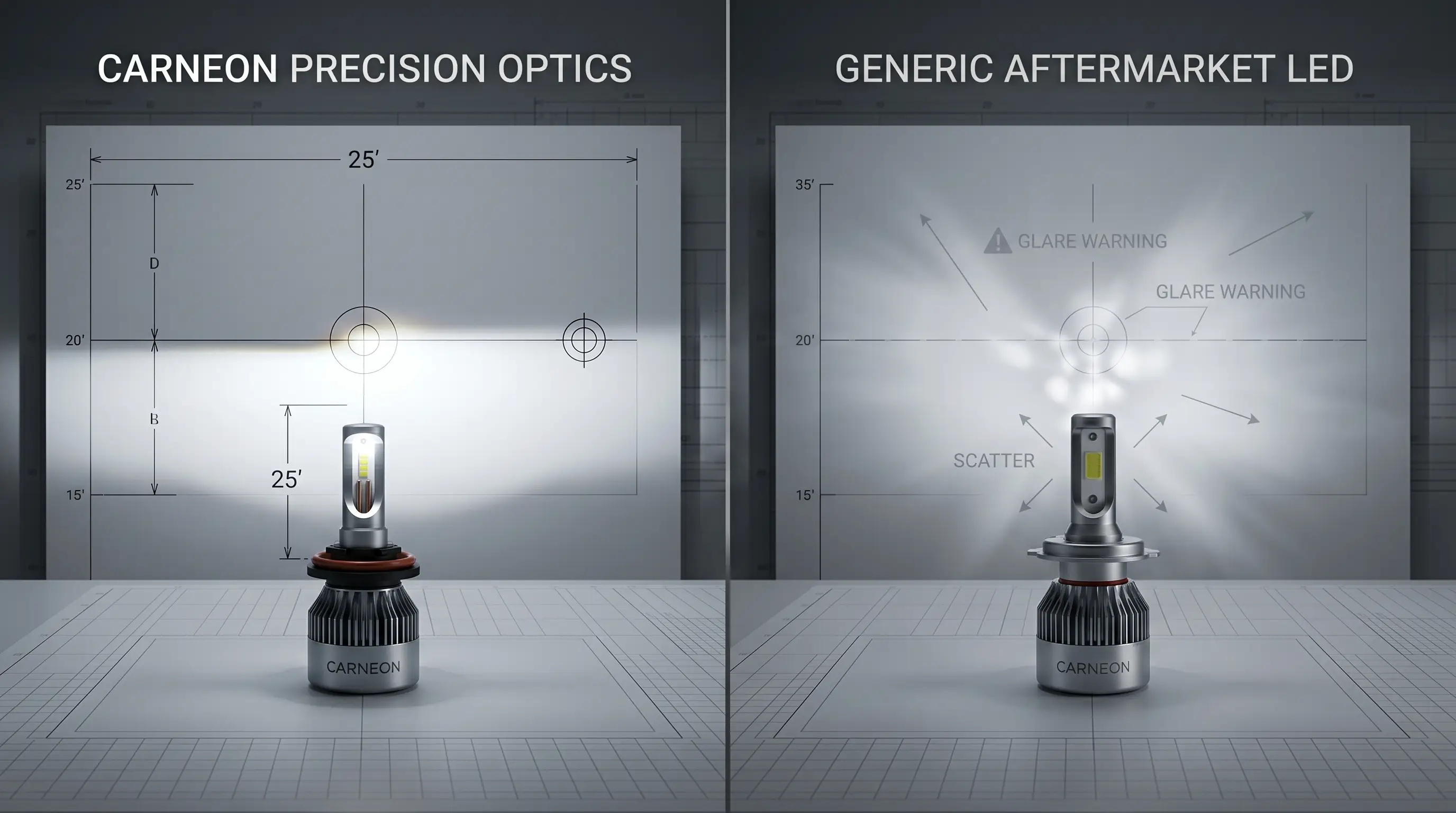

How to Perform the Wall-Projection Test for Beam Quality

You do not need a laboratory goniophotometer to verify optical precision. You can conduct a standard wall-projection test:

1. Park the vehicle exactly 25 feet (7.6 meters) away from a flat, vertically level wall on a flat surface.
2. Activate the low beams.
3. Observe the Cut-off: The top edge of the beam pattern should form a distinct, horizontal line (often with a step-up toward the passenger side to illuminate road signs). If the upper edge is fuzzy or throws significant light upward, the bulb is optically misaligned.
4. Observe the Intensity: The brightest concentration of light should be just below the cut-off step.

3. The Science of Thermal Stability

Light-emitting diodes are inherently sensitive to heat. For high-power automotive LEDs, managing the immense heat generated within the tight confines of a headlight assembly is a profound engineering challenge.

Junction Temperature Explained: Why Overheating Kills LED Performance

The "junction temperature" (Tj) is the operating temperature at the active semiconductor layer inside the LED chip. When Tj exceeds the manufacturer's specified threshold (typically around 85°C to 125°C depending on the CSP chip architecture), three detrimental things occur:

1. Rapid Lumen Depreciation: The bulb dims noticeably within minutes (thermal roll-off).
2. Color Shift: The color temperature may shift, often turning bluer or purpler.
3. Catastrophic Failure: Sustained excessive heat degrades the phosphor coating and wire bonds, leading to premature diode death.

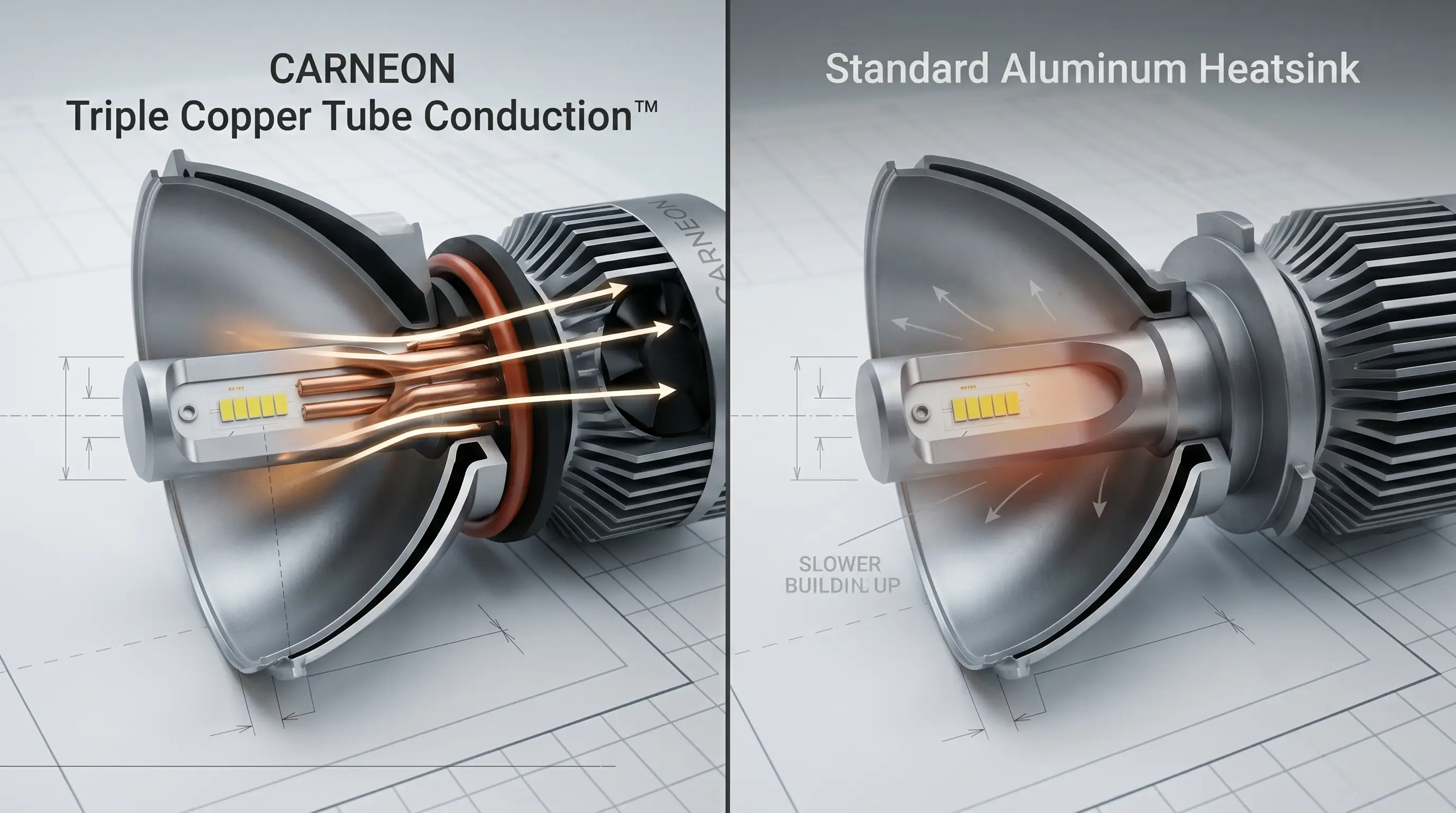

Cooling Technology Comparison: From Aluminum Fins to Copper Tube Conduction™

To combat junction temperature rise, manufacturers employ various LED thermal management systems. Not all are created equal, and matching the right technology to the power output is crucial.

CARNEON N12 Series — Quad Copper Conduction™ Benchmark

High-performance bulbs operating above 100W per pair cannot rely on aluminum alone. Aluminum simply does not transfer heat fast enough from the chip to the heatsink. CARNEON’s flagship performance models, such as the 360W N12 Series, utilize proprietary Quad Copper Tube Conduction™ technology.

By embedding direct-contact copper heat pipes — a material with dramatically higher thermal conductivity than aluminum — heat is instantly evacuated from the junction point and spread evenly across the high-surface-area heat sink. A 12,000 RPM precision ball-bearing fan then aggressively purges that heat. This allows our bulbs to maintain stable, sustained lumen output even in demanding off-road conditions or enclosed heavy-duty truck housings.

How to Request the Right Performance Data from Suppliers

When sourcing high-performance LED headlight bulbs from manufacturers, do not ask for "maximum lumens." Instead, demand the following data points:

• "What is the maintained effective lumen output after 30 minutes of continuous operation at 25°C ambient temperature?"
• "Do you provide L70 or L80 lumen maintenance reports?" (L70 indicates the time it takes for the bulb to degrade to 70% of its initial output.)

4. Compatibility & Long-Term Reliability

Optical precision and thermal stability are moot if the bulb refuses to integrate with the vehicle's electrical system or fails at the first sign of rough weather.

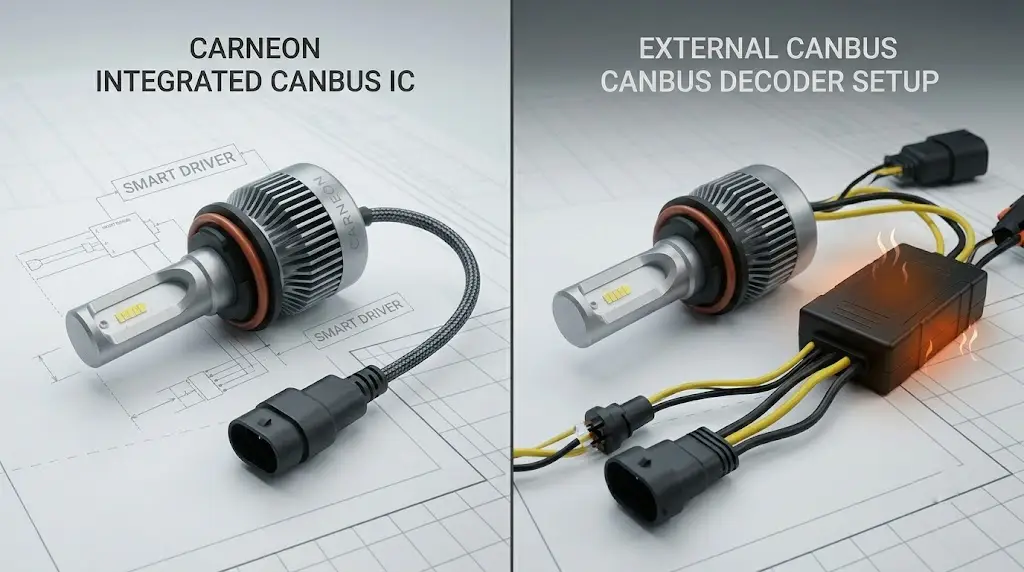

CANbus Integration: Why Built-In Decoders Are Superior to External Boxes

Modern vehicles use sophisticated Electronic Control Units (ECUs) and Controller Area Network (CAN) bus protocols to monitor lighting circuits. Because LEDs draw significantly less amperage than halogens, the ECU often interprets the lower draw as a "burnt-out bulb," triggering dashboard error codes, cutting power to the circuit, or causing the LED to flicker rapidly (due to Pulse Width Modulation signals).

Cheap bulbs attempt to solve this with cumbersome external load resistors that generate immense heat and complicate installation. High-performance models, like those engineered by CARNEON, feature advanced built-in CANbus decoding integrated directly into the intelligent driver IC. This ensures error-free, flicker-free operation across 99% of vehicle platforms without the need for splicing wires or mounting hot resistors against plastic engine components.

Environmental Hardiness: IP Ratings and Thermal Shock Resistance

A true high-performance bulb is built to survive the elements. Look for verifiable IP68 waterproof and dustproof ratings, meaning the bulb (including the cooling fan) can operate fully submerged. Furthermore, superior manufacturing involves rigorous thermal shock testing — subjecting the active bulb to rapid fluctuations from -40°C to 105°C to ensure solder joints and sealants do not fracture under extreme weather stress.

5. Buyer's Checklist & Application Matrix

Selecting the right bulb requires matching the engineering specifications to the intended use case.

Questions to Ask Any LED Headlight Supplier

• Does your manufacturing process guarantee ±0.3mm or better filament positional tolerance?
• Is the thermal management system passive, active aluminum, or copper-conducted?
• Is the CANbus decoding circuitry internal (IC-based) or relying on external dummy loads?
• Are the lumen claims based on raw initial output or integrated sphere testing after thermal stabilization?

Application Matrix: Matching Cooling Technology to Use Case

• Daily Commuting (City/Suburban): Standard Active Fan cooling (e.g., CARNEON E1 / E4 Series) provides excellent longevity and optical precision for typical nighttime driving.
• Rural / Highway Driving: High-power Active Fan or entry-level Copper Tube cooling ensures sustained distance visibility without thermal dimming on long stretches.
• Off-Road / Heavy Commercial / Extreme Climates: Advanced Triple/Quad Copper Tube Conduction™ (e.g., CARNEON N11 / N12 Series) is mandatory to survive prolonged high-output use and severe environmental stress.

6. Conclusion: Investing in Reliability Is Investing in Safety

Identifying high-performance LED headlight bulbs requires looking past the superficial numbers printed on the box. True performance is defined by the rigid adherence to 1:1 optical geometry to prevent dangerous glare, and the implementation of advanced thermal management systems to sustain brightness when it matters most.

Whether you are a B2B distributor vetting a new automotive lighting manufacturer or a professional retrofitter selecting components for a client, prioritizing these engineering fundamentals is the only reliable way to ensure long-term satisfaction and uncompromised road safety.
