The Ultimate B2B Guide to Sourcing Automotive LED Headlights: From Factory Verification to Technical Auditing (2026 Edition)

A strategic 2026 B2B sourcing guide for automotive LED headlight importers and distributors. Discover how to effectively audit manufacturing facilities, decode critical thermal and optical specifications, and eliminate CANbus compatibility errors to secure a reliable, high-margin supply chain.

1. Introduction: Why Sourcing the Wrong LED Bulb Is Costing You

The global automotive LED aftermarket is booming. Driven by tightening fuel economy regulations, the mass retirement of halogen technology, and the explosive growth of vehicle customization culture, the market for wholesale LED headlights is projected to continue its strong upward trajectory through 2026 and beyond. For B2B importers, distributors, and private label brands, this represents a significant commercial opportunity — but also a landscape riddled with risk.

Open any B2B sourcing platform and the picture looks deceptively simple: thousands of suppliers, each claiming "highest lumens," "best quality," and "factory direct pricing." In reality, the products behind those listings can vary wildly — from robust, professionally engineer ulk LED headlight bulbs to poorly assembled units with cheap chips, no CANbus compatibility, and lifespans measured in weeks rather than years.

For your business, the consequences of sourcing the wrong supplier extend far beyond a single bad batch. High return rates erode margins, negative reviews damage your brand, and customer support costs spiral out of control. The root cause, in nearly every case, is the same: buyers lacked a structured technical auditing framework when evaluating automotive LED lighting manufacturers.

This guide changes that. Drawing on CARNEON's 16+ years of manufacturing expertise at our ISO-certified facility in Guangzhou, we will walk you through the four critical dimensions of professional LED headlight sourcing: thermal engineering, optical performance, CANbus compatibility, and factory verification.

2. Technical Blueprint: Decoding LED Headlight Performance Parameters

Before you can evaluate a supplier, you need to understand what you are actually buying. LED headlight technology has advanced rapidly, and marketing language has not kept pace with engineering reality. Here is how to read past the hype.

Real Lumens vs. Marketing Hype: The Junction Temperature Challenge

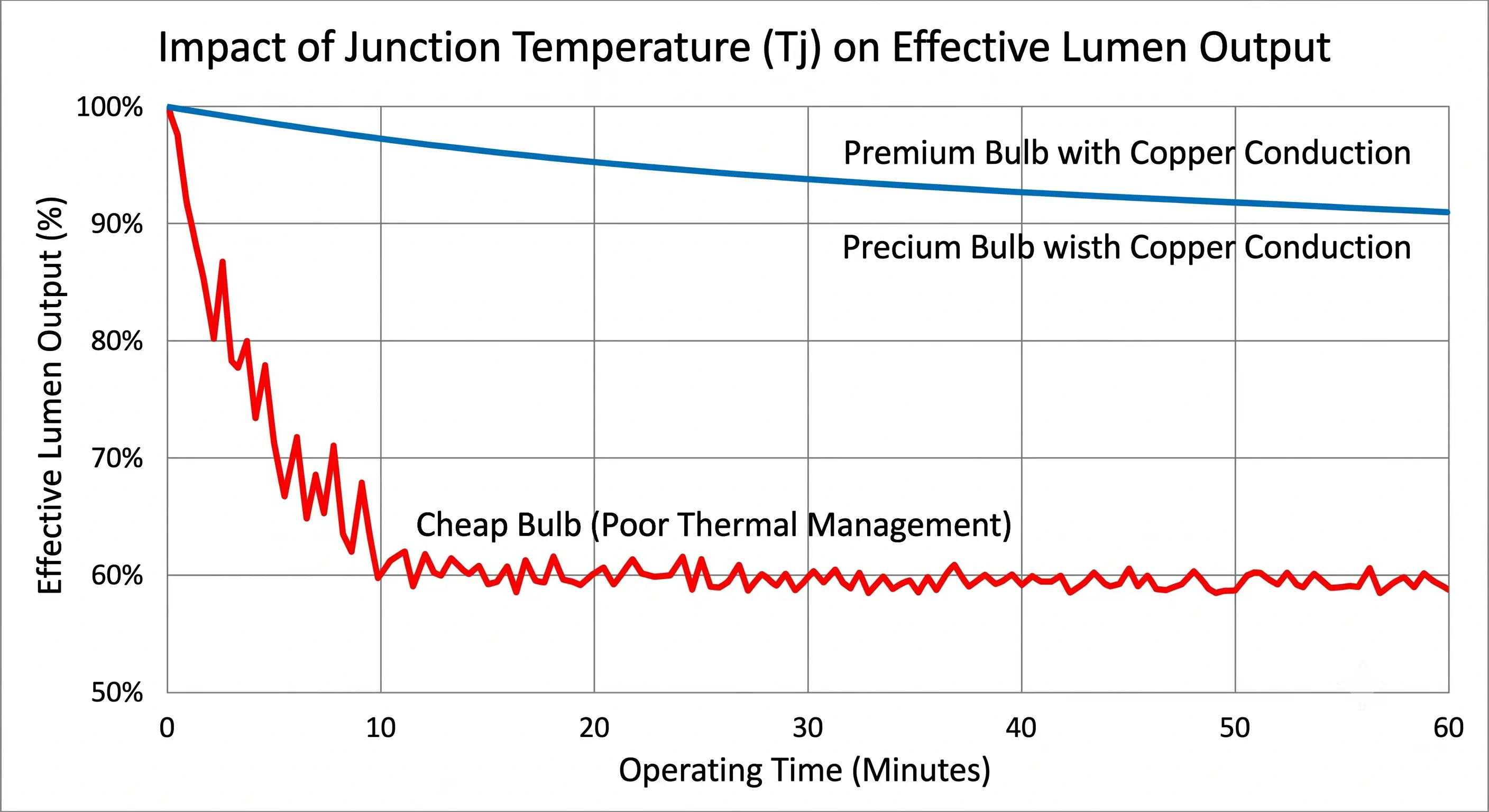

Most product listings advertise raw lumens — the maximum light output measured under ideal, instantaneous conditions. This number is virtually meaningless for real-world performance evaluation. What actually determines how bright a bulb remains after 30 minutes of continuous use is junction temperature (Tj): the operating temperature at the LED chip's active layer.

When Tj climbs above safe thresholds — typically above 85°C for most CSP chips — lumen output degrades rapidly in a process called lumen depreciation. A bulb rated at 16,000 raw lumens may deliver just 10,000 effective lumens after ten minutes in a sealed headlight housing with inadequate thermal management. For your end-customers, this means a bulb that looked spectacular in an unboxing video performs disappointingly on the road.

When requesting technical documentation from suppliers during your led headlight bulb sourcing guide process, always ask for lumen maintenance data at 1,000 hours (L70 or L80 ratings), not just peak output figures. A reputable manufacturer will have this data readily available from integrating sphere testing.

Thermal Management: Passive vs. Active vs. Advanced Copper Technology

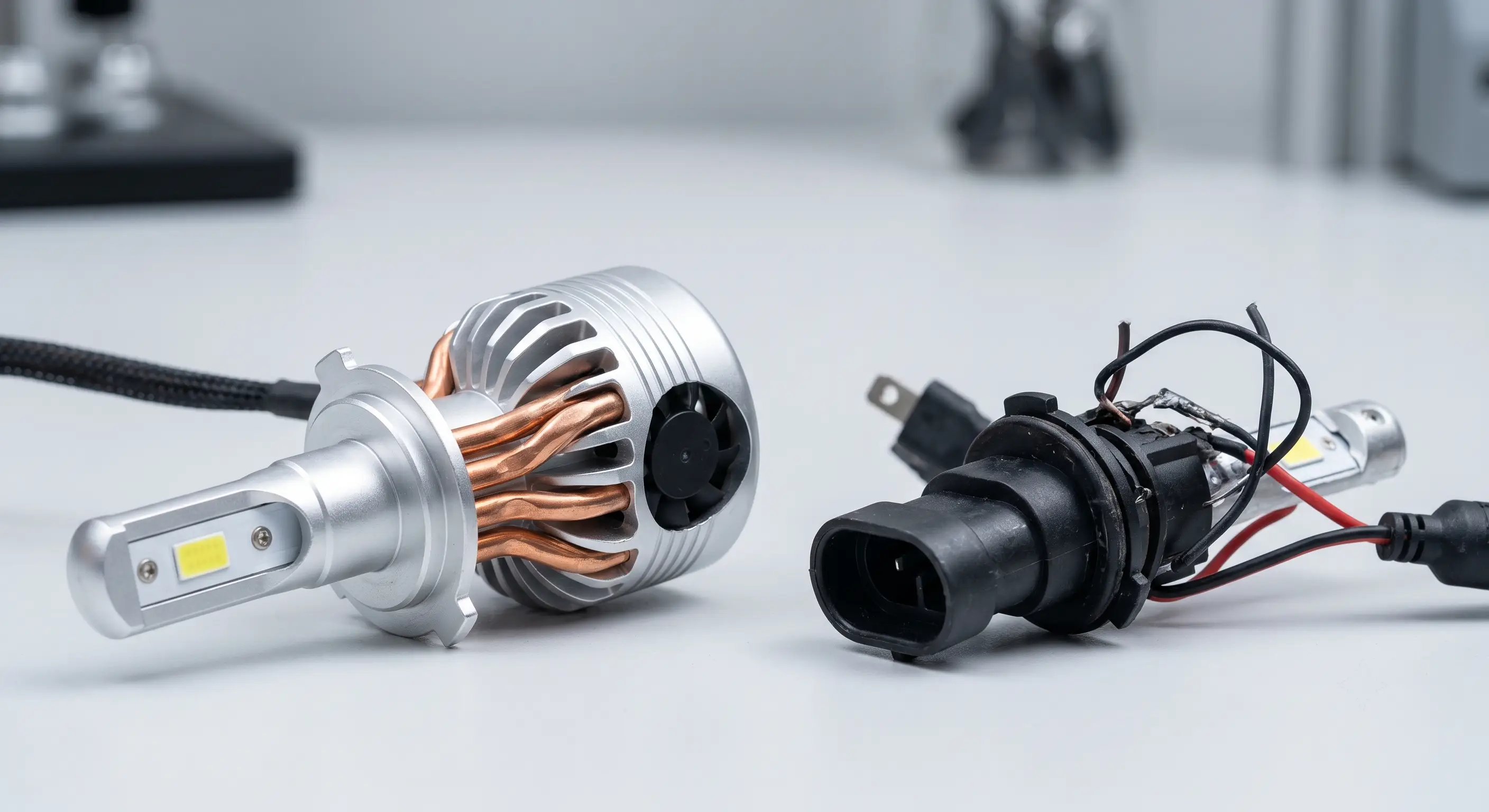

Thermal management is the single biggest differentiator between a premium LED headlight and a cheap imitation. The market currently offers three tiers of thermal engineering:

CARNEON's high-power series (including our flagship N11 240W, N12 360W, and N14 App Control series) employs our proprietary Triple and Quad Copper Tube Conduction™ technology, which uses direct-contact copper heat pipes to transfer thermal energy away from the LED chip and dissipate it across a large surface area — far more efficiently than aluminum alone. When sourcing for extreme environments or high-performance applications, choosing a triple copper cooling led headlight factory is non-negotiable for securing long-term reliability.

3. Optical Geometry: Why Beam Pattern Matters More Than Brightness

A common mistake among wholesale led headlights buyers is evaluating a bulb based solely on its brightness. In automotive lighting, raw output without control is dangerous. Poorly controlled light creates glare that blinds oncoming traffic, violating transport regulations globally (such as DOT in the US or ECE in Europe) and generating immediate consumer complaints.

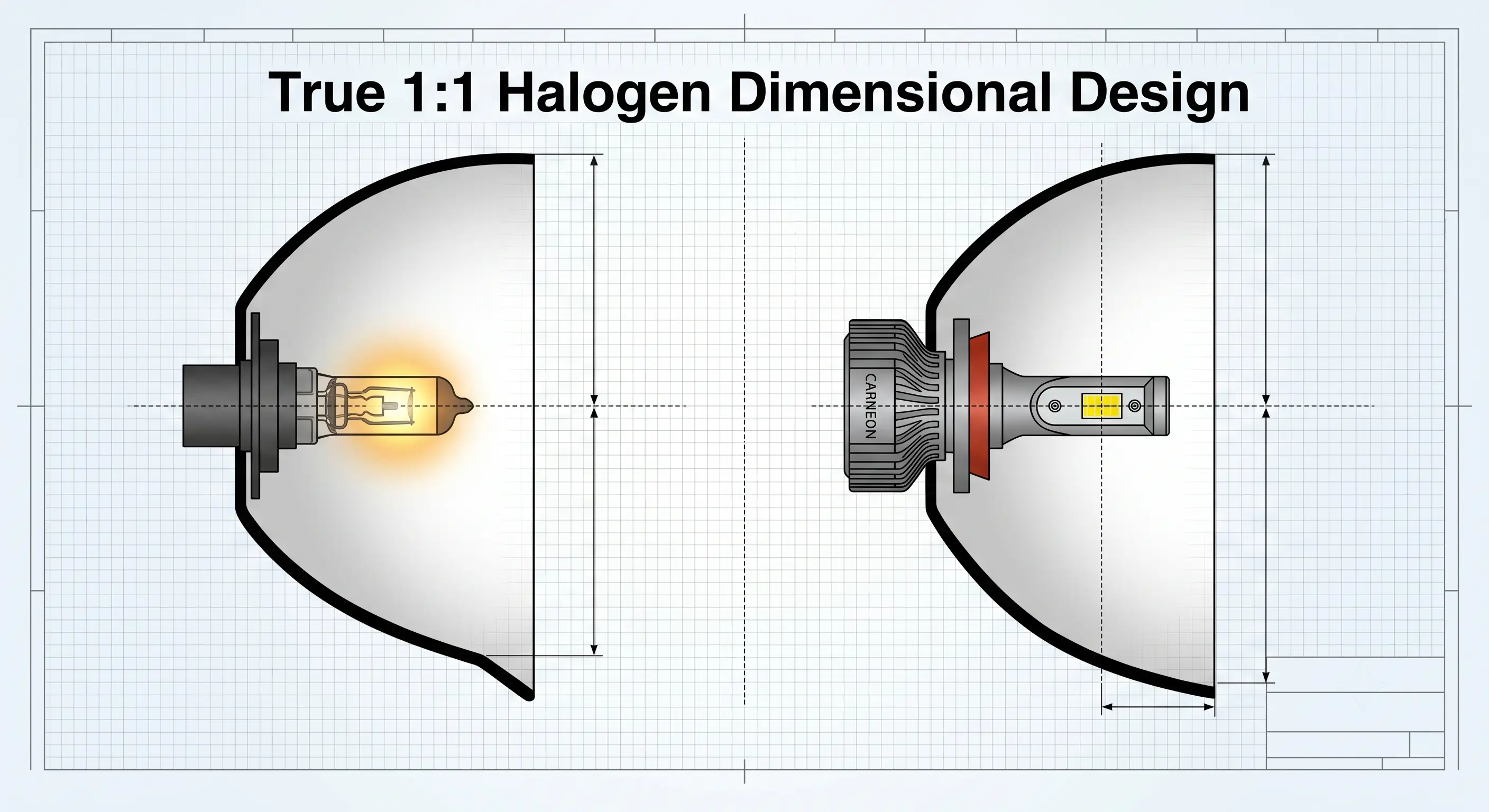

The Importance of Filament Alignment: 1:1 Halogen Size

To produce a safe and effective beam pattern, the LED chips must be positioned in the exact space occupied by the tungsten filament of the original halogen bulb. This is known as 1:1 optical alignment.

If the emitting surface of the CSP chip is even 0.5mm out of alignment, the vehicle's reflector bowl will misdirect the light. CARNEON's full LED headlight bulb lineup (such as our E1 and E4 Plug & Play series) uses true 1:1 halogen dimensional design, ensuring that the light hits the reflector at the correct focal point, maintaining the vehicle’s original light distribution geometry.

Avoiding Glare and Achieving Sharp Cut-off Lines

A high-quality LED bulb must deliver a clear, sharp cut-off line on the low beam to prevent blinding oncoming drivers, along with a concentrated hotspot on the high beam for extended distance visibility. When auditing high power led headlight bulbs wholesale 2026 samples, always conduct a distance-to-wall beam test to verify the cut-off clarity.

For custom vehicle upgrades and retrofits requiring precision optical control, our specialized LED Projector Lens solutions (including the dual-beam X50 and X60 series) utilize advanced optical engineering to produce uniform illumination with an uncompromisingly sharp cut-off line, minimizing glare while maximizing road safety.

4. Solving the Aftermarket Nightmare: CANbus Compatibility & Anti-Flickering

Nothing kills a B2B distributor’s profit margins faster than high return rates caused by vehicle compatibility issues. Modern automotive electrical systems rely on Electronic Control Units (ECUs) that monitor the power draw of every bulb. Because LEDs draw significantly less power than halogen bulbs, the ECU often assumes the bulb is broken, triggering dashboard error codes, hyper-flashing, or a complete system shut-off.

Why Do End-Consumers Complain About LED Flickering?

Many vehicles utilize Pulse Width Modulation (PWM) to control daytime running lights or headlights. PWM rapidly cycles power on and off. While a slow-reacting halogen filament blends these pulses smoothly, a fast-reacting LED chip will visibly flicker. To understand the underlying electronics behind these errors, please refer to our comprehensive automotive LED headlight flickering guide.

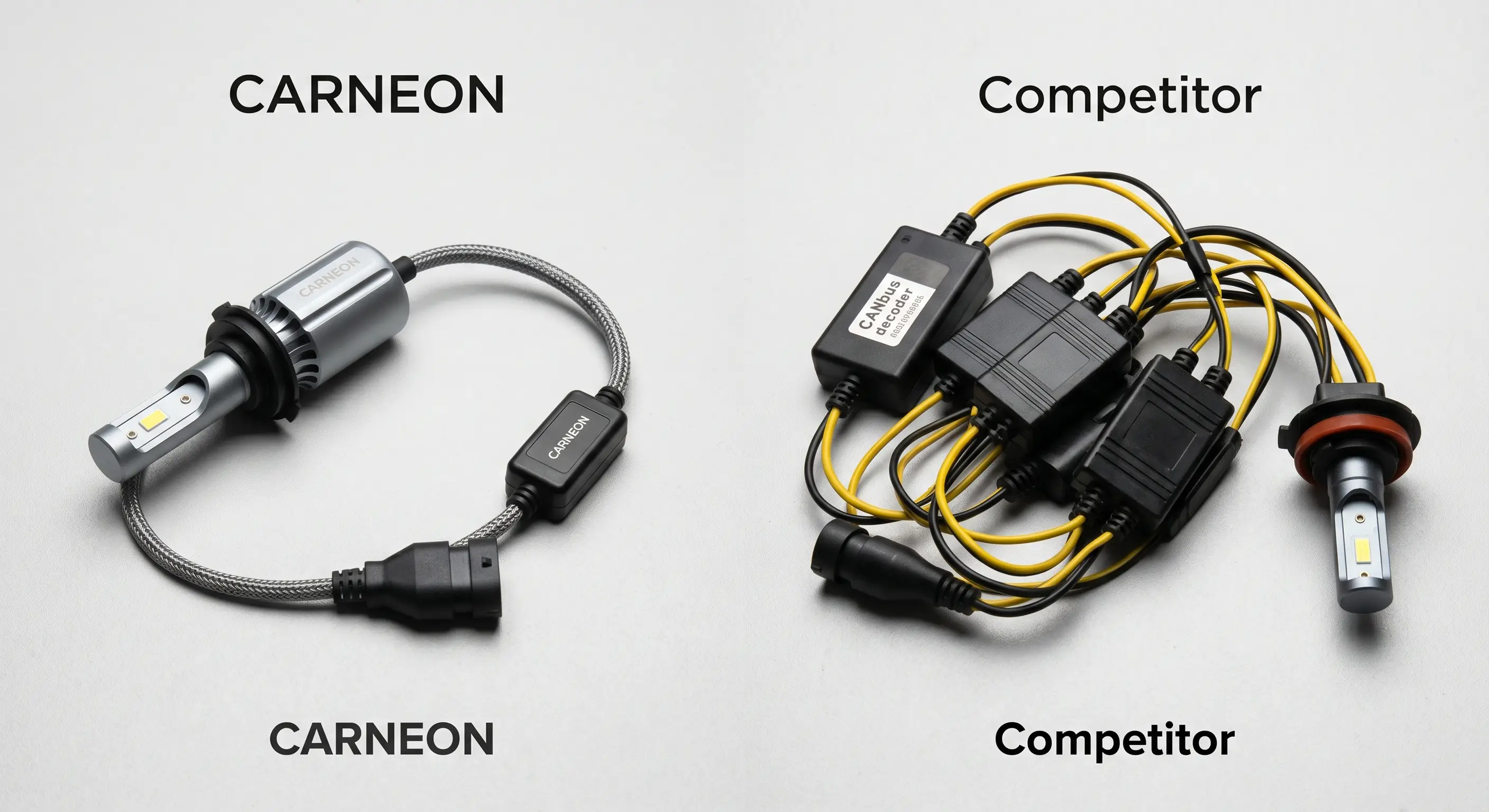

Evaluating Built-In vs. External CANbus Decoders

When purchasing bulk led headlight bulbs, you must choose between bulbs with external CANbus adapters or those with integrated internal decoding circuitry. External adapters add bulk, complicate the installation process, and represent an additional failure point. CARNEON engineers all CANbus functionality directly into the intelligent driver IC of each product, delivering an elegant, single-unit solution that resolves error codes and flickering across 99% of modern vehicle applications without external wiring hardware.

5. Step-by-Step Supplier Auditing Protocol for B2B Importers

To eliminate trading companies masquerading as factories and secure a reliable partner among automotive led lighting manufacturers, you must implement a strict verification protocol.

Step 1: Verification of Quality Management Systems

A legitimate tier-one automotive lighting factory must operate under certified management frameworks. Ask the supplier to provide their updated certificates for review:

• ISO 9001: Standard quality management framework.
• IATF 16949: The strict global technical specification for the automotive industry. Certification under IATF 16949 proves the factory is capable of maintaining rigorous, repeatable quality control across large-scale OEM production runs.

CARNEON's Guangzhou facility operates under a fully ISO-certified quality management system, ensuring strict trace-ability for every batch of canbus error free led headlight bulbs bulk that leaves our line.

Step 2: Regional Regulatory Compliance & Certifications

Ensure your supplier possesses the specific legal certifications required for your destination marketplace. Sourcing uncertified products risks customs seizures or heavy liabilities:

• North America: Look for DOT (Department of Transportation) and SAE compliance markings.
• Europe: CE marking and RoHS compliance are mandatory for electronic safety components. For legal road use in specific European nations, verify E-Mark status.

Step 3: Factory Production Capacity & Testing Equipment

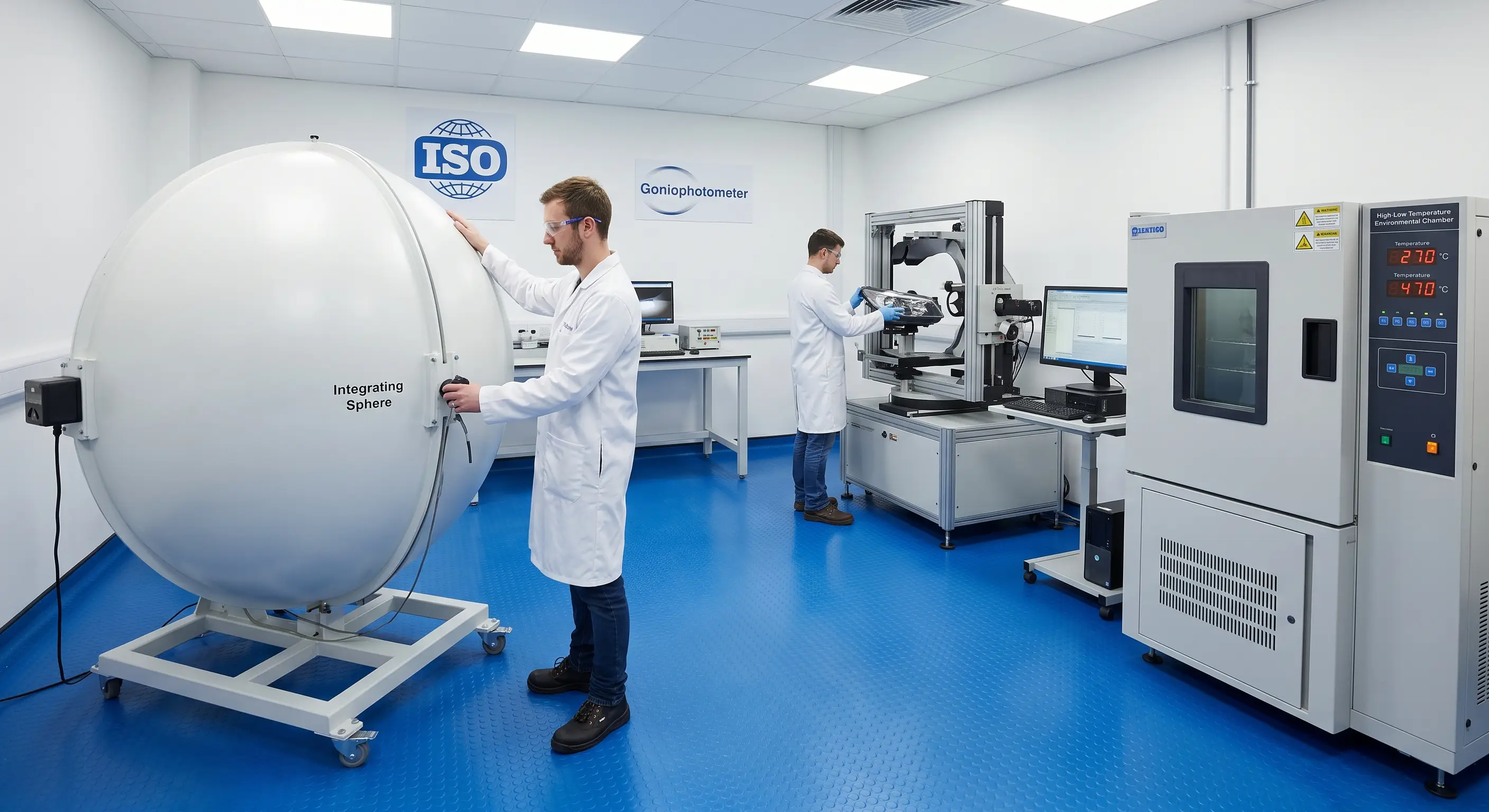

A reputable factory should show you their technical testing infrastructure during a physical visit or virtual audit. Ensure your manufacturing partner utilizes the following essential equipment:

1. Integrating Sphere: Measures exact lumen output, color rendering index (CRI), and color temperature.
2. Goniophotometer: Analyzes the precise spatial light distribution and beam pattern geometry.
3. High-Low Temperature Environmental Chamber: Tests bulb stability under thermal shock (-40°C to 105°C).

CARNEON's facility houses the full suite of testing equipment listed above, ensuring that every bulk wholesale production run undergoes comprehensive multi-stage stress testing before packaging.

6. Customization and Private Labeling (OEM/ODM Capability)

Building long-term business equity requires moving away from generic white-box products and establishing your own brand identity. For a deep dive into building your own brand presence in this market, consult our dedicated OEM Automotive LED Lighting Manufacturing: Private Label Guide.

Evaluating a Manufacturer's R&D Options

A reliable OEM partner should offer scalable private labeling choices suited to your operational scope, including laser branding on the bulb body, custom printed packaging, and tailored wire harness modifications. For high-end applications, look for advanced ODM capabilities, such as custom circuit design or app-driven lighting integration.

CARNEON's R&D team can support full ODM development, as demonstrated by our customized LED headlight solution delivered to a major Southeast Asian automotive manufacturer — a 50,000-unit project that significantly increased our client's regional market share.

Commercial Terms to Negotiate

When drafting your supply agreements, maintain focus on three critical pillars: minimum order quantities (MOQs) for custom packaging configurations, definitive production lead times, and comprehensive warranty terms. Top-tier manufacturers typically offer a 2-year replacement warranty, demonstrating complete confidence in their thermal and electrical engineering.

7. Conclusion & Your 30-Day Sourcing Action Plan

Transitioning to a higher-quality supply chain does not have to be complicated. Implement this structured 30-day plan to minimize risk and elevate your product quality:

• Days 1–10: Filter potential suppliers based on IATF 16949 certification and regional legal compliance.
• Days 11–20: Order initial samples and request integrating sphere and lumen maintenance documentation.
• Days 21–30: Complete low-beam cut-off alignment evaluations and run 48-hour continuous thermal stress trials.

Partnering with a proven manufacturer protects your brand's reputation and secures stable commercial margins. Contact CARNEON today to request our latest 2026 Wholesale Product Catalogue and secure a free OEM/ODM project consultation with our sales engineers.
